77313-827-06LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

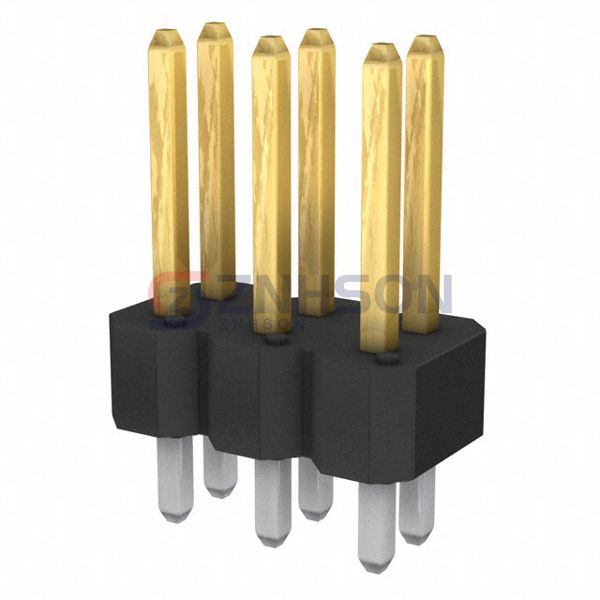

CONN HEADER VERT 6POS 2.54MM
$0.32
Available to order
Reference Price (USD)
2,000+
$0.23776
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 77313-827-06LF rectangular connector header from Amphenol ICC (FCI). These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 77313-827-06LF is perfect for automotive, industrial, and consumer electronics. Amphenol ICC (FCI) ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.105" (2.67mm)
- Overall Contact Length: 0.465" (11.81mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
