803-43-020-62-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN RCPT 20POS 0.1 GOLD PCB
$5.88
Available to order
Reference Price (USD)
1+
$4.83000
10+
$4.63600
25+
$4.25000
50+
$4.05660
100+
$3.86350
250+
$3.38060
500+
$3.28400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with 803-43-020-62-001000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Mill-Max Manufacturing Corp. connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.276" (7.00mm)
- Contact Length - Post: 0.143" (3.63mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.5A
- Voltage Rating: -
Related Products
Samtec Inc.
SSQ-125-02-S-D-RA
Würth Elektronik
690367181672
Samtec Inc.
HPF-10-01-T-S
Samtec Inc.
BCS-104-L-D-PE-BE
Samtec Inc.
SEM-130-02-03.0-H-D-A
Samtec Inc.

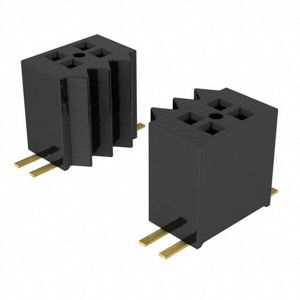

CLE-111-01-G-DV-P
Samtec Inc.
HLE-150-02-G-DV
Preci-Dip

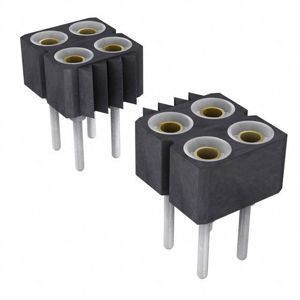

411-87-256-41-001101
Mill-Max Manufacturing Corp.

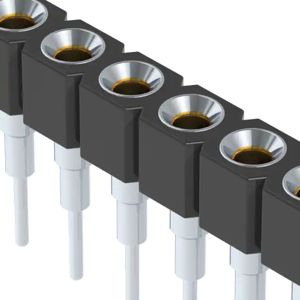

316-91-141-41-006000
