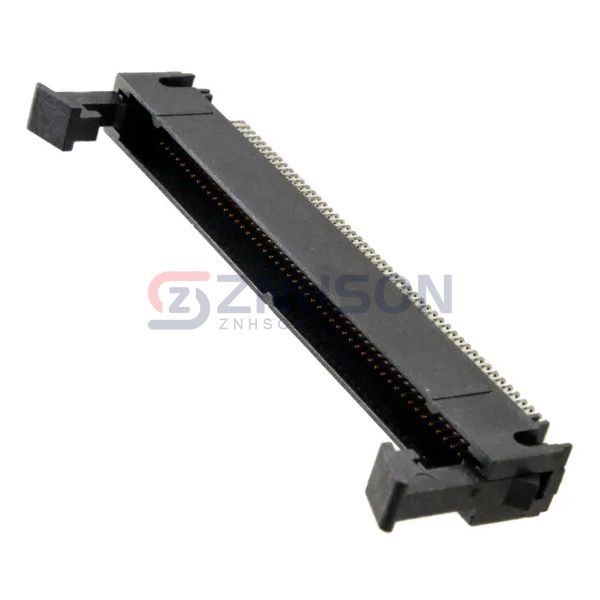

81100-560203-RB
3M
3M
CONN HEADER R/A 100P 1.27MM
$27.79
Available to order
Reference Price (USD)
1+
$21.10000
10+
$19.05100
100+
$16.54160
500+
$15.17264
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 81100-560203-RB male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.140" (3.56mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.310" (7.87mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.75A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF11C-18DP-2V(57)
TE Connectivity AMP Connectors
2-1445053-5
Samtec Inc.
TSM-116-01-L-DH-A-032-P-TR
Samtec Inc.
TSM-106-01-L-SH-A-003-P
Samtec Inc.
FTSH-112-01-F-DV-P
Mill-Max Manufacturing Corp.
802-10-060-10-001000
TE Connectivity AMP Connectors
2-1445086-6
Oupiin

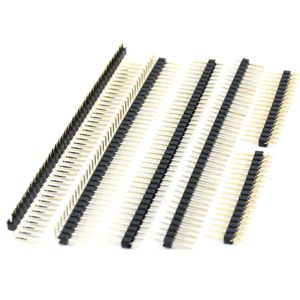

2011-1X30G00SH035B
Samtec Inc.

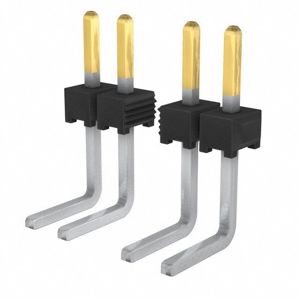

TMM-132-01-S-S-RA
