8209-7003
3M
3M

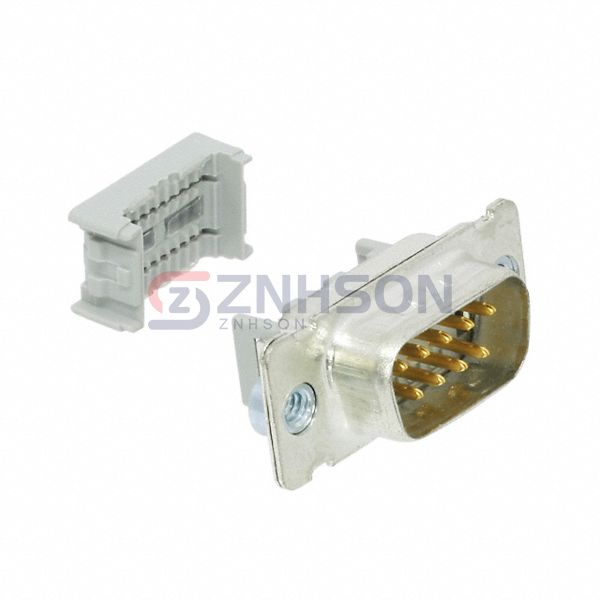

CONN D-SUB PLUG 9POS PNL MNT IDC
$8.61
Available to order
Reference Price (USD)
100+
$7.03000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the 3M 8209-7003 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 8209-7003 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Plug, Male Pins
- Number of Positions: 9
- Number of Rows: 2
- Mounting Type: Panel Mount
- Shell Size, Connector Layout: 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: IDC, Ribbon Cable
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 1A
- Backset Spacing: -
- Features: Grounding Indents
