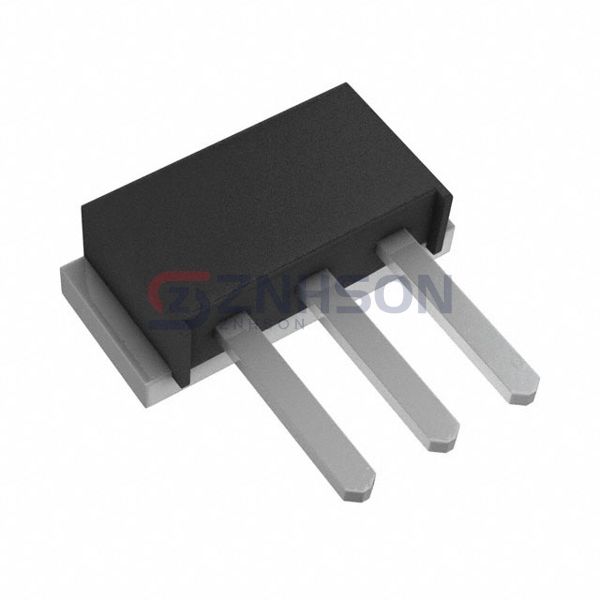

85CNQ015SM
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 15V 40A PRM2-SM
$17.05
Available to order
Reference Price (USD)
1,056+
$13.34699
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the 85CNQ015SM diode rectifier array by SMC Diode Solutions, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. SMC Diode Solutions delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 15 V
- Current - Average Rectified (Io) (per Diode): 40A
- Voltage - Forward (Vf) (Max) @ If: 450 mV @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 20 mA @ 15 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: PRM2-SM
- Supplier Device Package: PRM2-SM
Related Products
SMC Diode Solutions
ST20150C
Panjit International Inc.
MBR30150FCT_T0_00001
Vishay General Semiconductor - Diodes Division
VS-VSKC71/10
Panjit International Inc.
BAW56W_R1_00001
Nexperia USA Inc.
BAW56SRAZ
Infineon Technologies
DD350N18KHPSA1
Renesas Electronics America Inc
HRB0103BTR-E
STMicroelectronics
STPS30170CFP
Taiwan Semiconductor Corporation

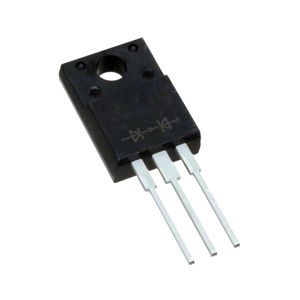

TSF30U120C
