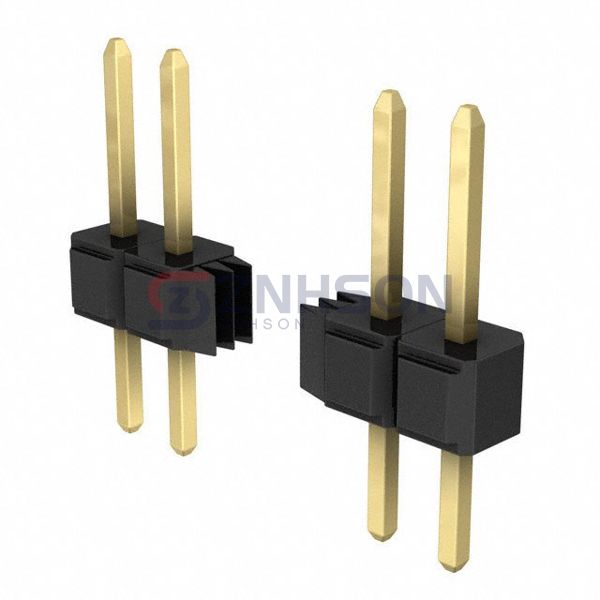

929647-09-08-I
3M
3M
CONN HEADER VERT 8POS 2.54MM
$2.57
Available to order
Reference Price (USD)
1+
$2.64000
10+
$2.39900
25+
$2.25200
50+
$2.15420
100+
$2.05630
250+
$1.86048
500+
$1.71360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929647-09-08-I by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-111-08-L-S-RA
TE Connectivity AMP Connectors
1761607-7
Sullins Connector Solutions
NRPN091PARN-RC
Sullins Connector Solutions
NRPN282MAMS-RC
Sullins Connector Solutions
PBC20SAFN
Samtec Inc.
ZSS-117-03-G-D-740
Amphenol ICC (FCI)
861400081LO2LF
Samtec Inc.

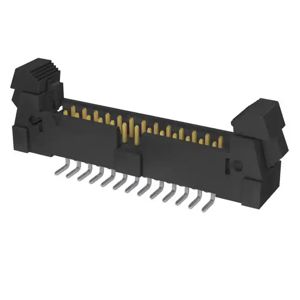

EHT-113-01-S-D-SM-K-TR
Samtec Inc.

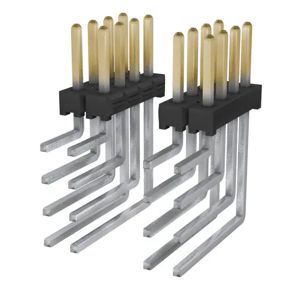

TMM-112-01-S-Q-RA
