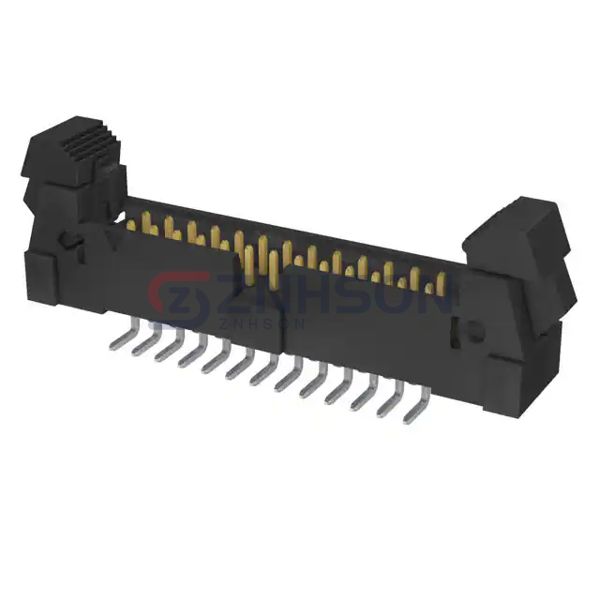

EHT-113-01-S-D-SM-K-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 26POS 2MM
$11.94
Available to order
Reference Price (USD)
125+
$9.26504
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EHT-113-01-S-D-SM-K-TR male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-112-01-S-Q-RA
Amphenol ICC (FCI)
69192-616HLF
Samtec Inc.
LTMM-115-02-S-D-SM-LC-P
Samtec Inc.
FTSH-105-04-F-MT-TR
Samtec Inc.
TFM-130-12-S-D-A-P-TR
Samtec Inc.
TMM-108-03-F-D

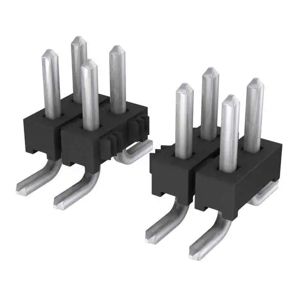

Samtec Inc.
TMM-118-01-T-D-SM

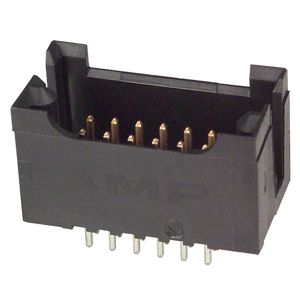

TE Connectivity AMP Connectors
102692-1

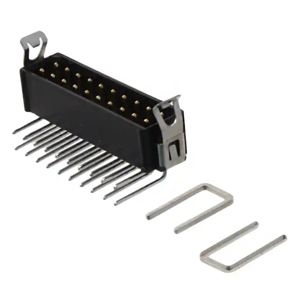

Harwin Inc.
