929705-09-33-EU
3M
3M
CONN HEADER VERT 33POS 2.54MM
$6.03
Available to order
Reference Price (USD)
1+
$5.74000
10+
$5.51200
25+
$5.05280
50+
$4.82320
100+
$4.59360
250+
$4.01940
500+
$3.90456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929705-09-33-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 33
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TFM-140-02-L-D-LC-P-TR
Molex
0436501110
Samtec Inc.

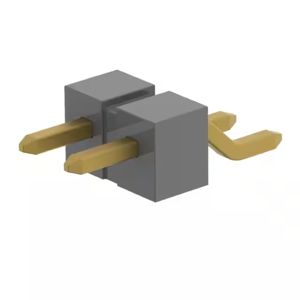

TSM-102-01-L-DH-A-TR
Sullins Connector Solutions
GEC07SAAN
Samtec Inc.
TMM-124-01-S-S-RA
TE Connectivity AMP Connectors
826468-3
Samtec Inc.
TSW-120-26-T-D
Samtec Inc.
TSM-107-01-TM-SV-A
TE Connectivity AMP Connectors

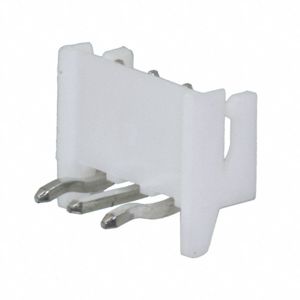

440053-3
