A-CSL-S-020-B9-A
Assmann WSW Components
Assmann WSW Components

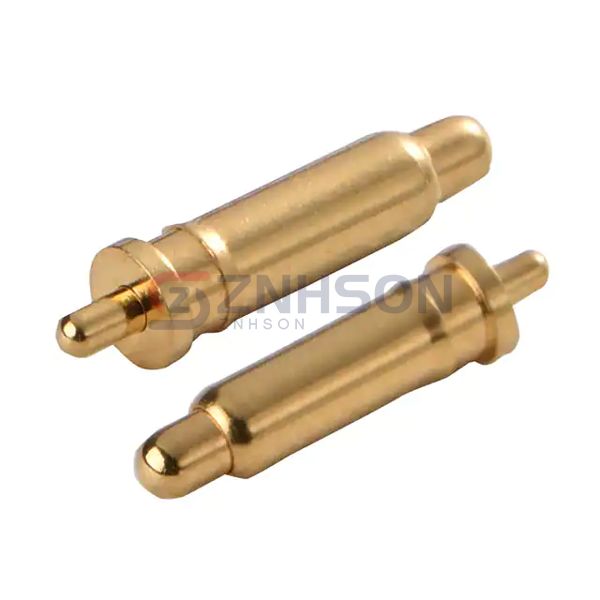

CONN PIN SPRING LOAD 7.569MM AU
$3.22
Available to order
Reference Price (USD)
1+
$3.22000
500+
$3.1878
1000+
$3.1556
1500+
$3.1234
2000+
$3.0912
2500+
$3.059
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets versatility in Assmann WSW Components's A-CSL-S-020-B9-A modular Spring Loaded Contact system. This innovative Pressure Connectors solution allows engineers to mix-and-match plunger heads, spring forces, and housing materials for customized interconnect profiles. The category shines in prototyping applications, research lab equipment, and low-volume manufacturing with quick-ship configurations. Notable implementations include university robotics projects, particle physics detector interfaces, and Mars rover testbed connections. A-CSL-S-020-B9-A supports unique requirements like ultra-low-force (10gf) contacts for delicate membrane switches or high-insertion-force (500gf) versions for power distribution modules - all with gold-over-nickel plating for superior corrosion resistance.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole
- Maximum Working Height: 0.298" (7.57mm)
- Recommended Working Height: 0.270" (6.87mm)
- Minimum Working Height: 0.248" (6.30mm)
- Pad Layout Dimension: Circular - 0.072" (1.83mm) (TH)
- Operating Force - Initial: 60gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.042" (1.07mm) Dia
- Features: -
- Mating Cycles: 1000000
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
