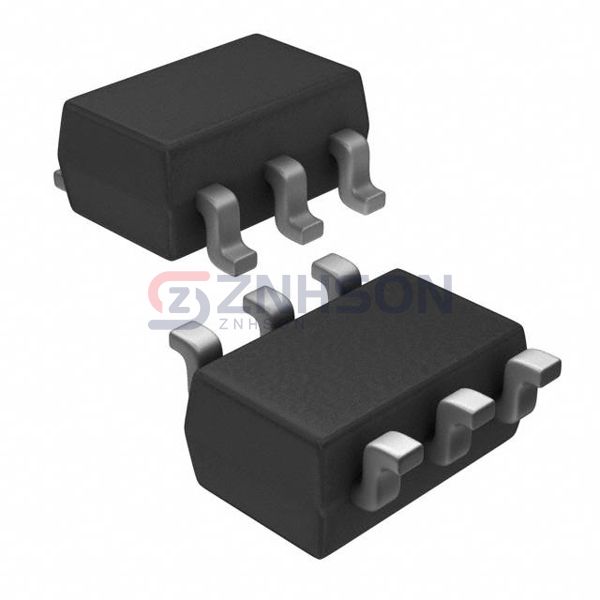

AO6701
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET P-CH 30V 2.3A 6TSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AO6701 by Alpha & Omega Semiconductor Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the AO6701 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 2.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
- Rds On (Max) @ Id, Vgs: 135mOhm @ 2.3A, 10V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.9 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 409 pF @ 15 V
- FET Feature: Schottky Diode (Isolated)
- Power Dissipation (Max): 1.15W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP
- Package / Case: SC-74, SOT-457
