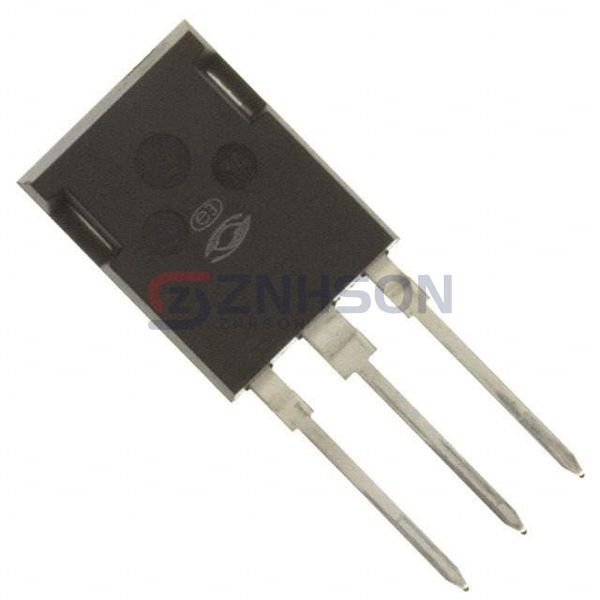

APT20M22B2VFRG
Microsemi Corporation
Microsemi Corporation
MOSFET N-CH 200V 100A T-MAX
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the APT20M22B2VFRG from Microsemi Corporation, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the APT20M22B2VFRG ensures reliable performance in demanding environments. Upgrade your circuit designs with Microsemi Corporation's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 4V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 435 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 10200 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 520W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: T-MAX™ [B2]
- Package / Case: TO-247-3 Variant
