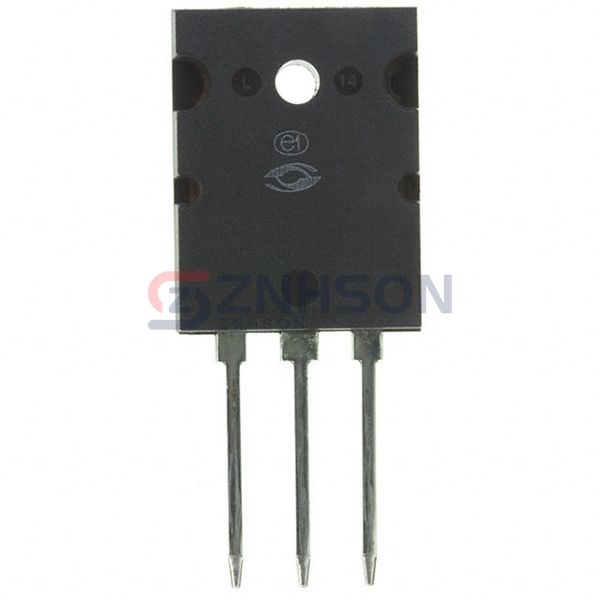

APT22F120L
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 23A TO264
$16.01
Available to order
Reference Price (USD)
1+
$16.01000
500+
$15.8499
1000+
$15.6898
1500+
$15.5297
2000+
$15.3696
2500+
$15.2095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the APT22F120L by Microchip Technology, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The APT22F120L stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Microchip Technology.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 700mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 260 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 8370 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1040W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-264 [L]
- Package / Case: TO-264-3, TO-264AA
