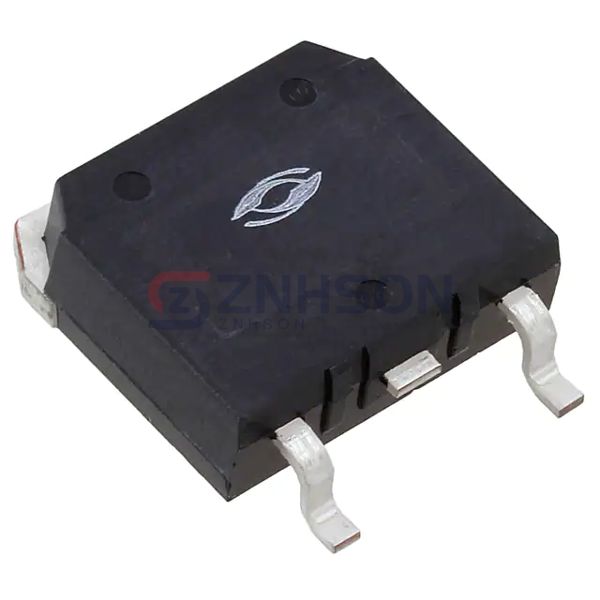

APT7F120S
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 7A D3PAK
$7.02
Available to order
Reference Price (USD)
1+
$7.02000
500+
$6.9498
1000+
$6.8796
1500+
$6.8094
2000+
$6.7392
2500+
$6.669
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the APT7F120S from Microchip Technology, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the APT7F120S ensures reliable performance in demanding environments. Upgrade your circuit designs with Microchip Technology's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.4Ohm @ 3A, 10V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2565 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 335W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D3PAK
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
