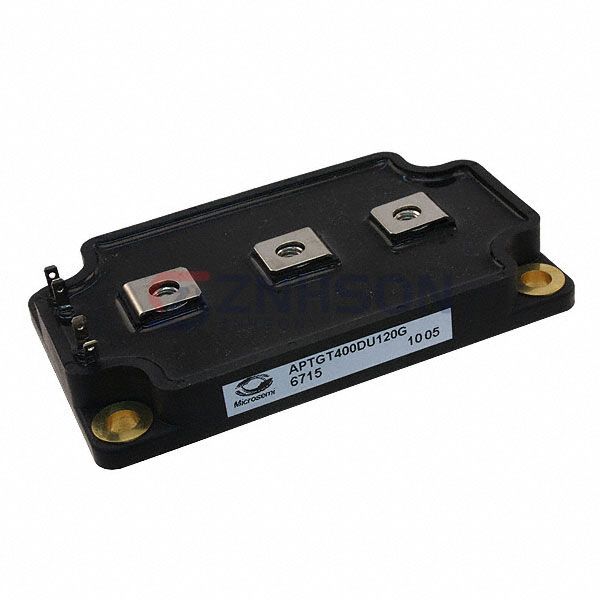

APTGT400DU120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 560A 1785W SP6
$373.36
Available to order
Reference Price (USD)
100+
$186.66100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Microchip Technology's APTGT400DU120G, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The APTGT400DU120G performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Microchip Technology's APTGT400DU120G, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 560 A
- Power - Max: 1785 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 400A
- Current - Collector Cutoff (Max): 750 µA
- Input Capacitance (Cies) @ Vce: 28 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
