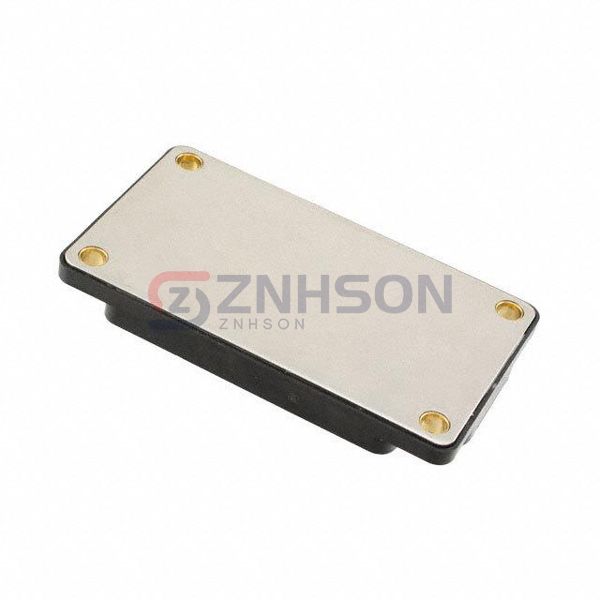

APTM100TDU35PG

Microsemi Corporation
APTM100TDU35PG Preview
Microsemi Corporation
MOSFET 6N-CH 1000V 22A SP6-P
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Obsolete
  • FET Type: 6 N-Channel (3-Phase Bridge)
  • FET Feature: Standard
  • Drain to Source Voltage (Vdss): 1000V (1kV)
  • Current - Continuous Drain (Id) @ 25°C: 22A
  • Rds On (Max) @ Id, Vgs: 420mOhm @ 11A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 2.5mA
  • Gate Charge (Qg) (Max) @ Vgs: 186nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 5200pF @ 25V
  • Power - Max: 390W
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Chassis Mount
  • Package / Case: SP6
  • Supplier Device Package: SP6-P
