AWHW2 16G-0202
Assmann WSW Components
Assmann WSW Components

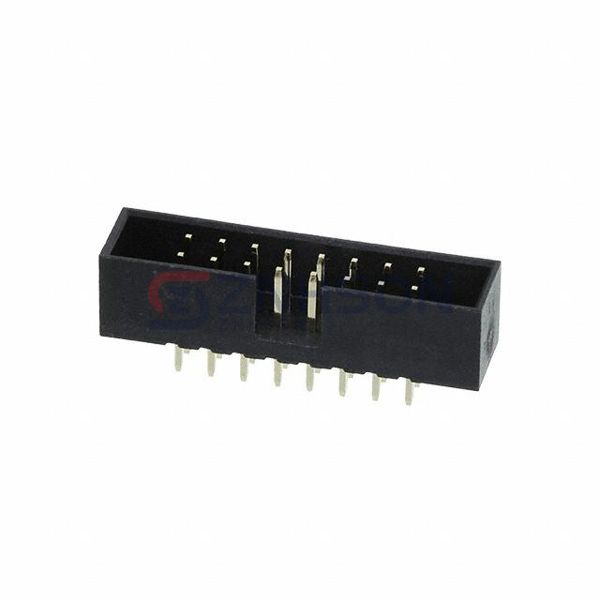

CONN HEADER VERT 16POS 2MM
$0.86
Available to order
Reference Price (USD)
1+
$1.02000
25+
$0.84480
100+
$0.77440
500+
$0.63360
1,000+
$0.56320
5,000+
$0.49280
10,000+
$0.46816
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the AWHW2 16G-0202 rectangular connector header from Assmann WSW Components. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the AWHW2 16G-0202 is perfect for automotive, industrial, and consumer electronics. Assmann WSW Components ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.226" (5.74mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T, Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.5A
- Voltage Rating: -
