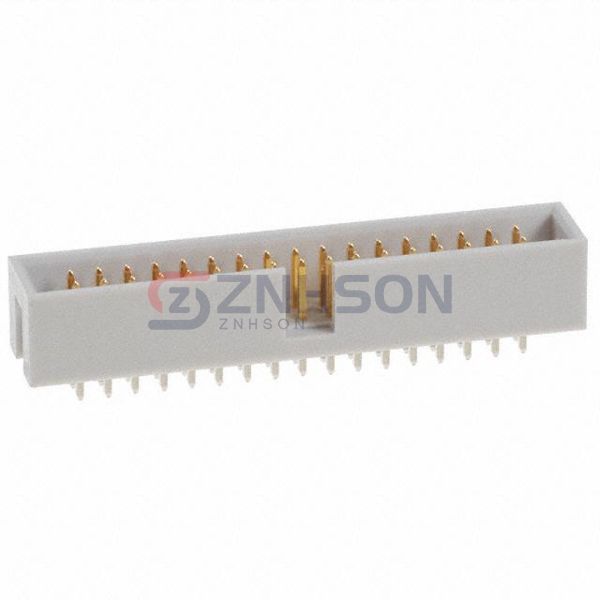

AWHW34G-0102-T-R
Assmann WSW Components
Assmann WSW Components
CONN HEADER VERT 34POS 2.54MM
$2.44
Available to order
Reference Price (USD)
1+
$3.76000
80+
$2.37500
160+
$2.16781
560+
$1.91280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWHW34G-0102-T-R male pin header by Assmann WSW Components provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Assmann WSW Components guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.224" (5.70mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
