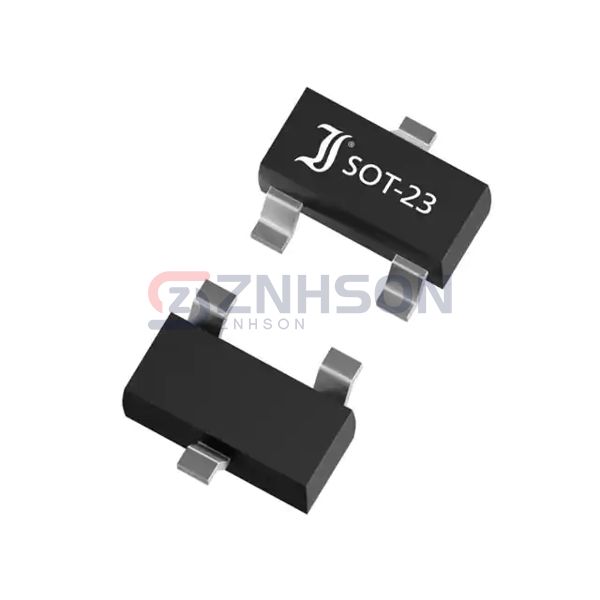

BAS70-04
Diotec Semiconductor
Diotec Semiconductor
SchottkyD, 70V, 0.07A
$0.08
Available to order
Reference Price (USD)
1+
$0.08000
500+
$0.0792
1000+
$0.0784
1500+
$0.0776
2000+
$0.0768
2500+
$0.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAS70-04 rectifier array from Diotec Semiconductor redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Diotec Semiconductor's precision manufacturing ensures each BAS70-04 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 70mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 50 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
