BAT120C,115
Nexperia USA Inc.
Nexperia USA Inc.

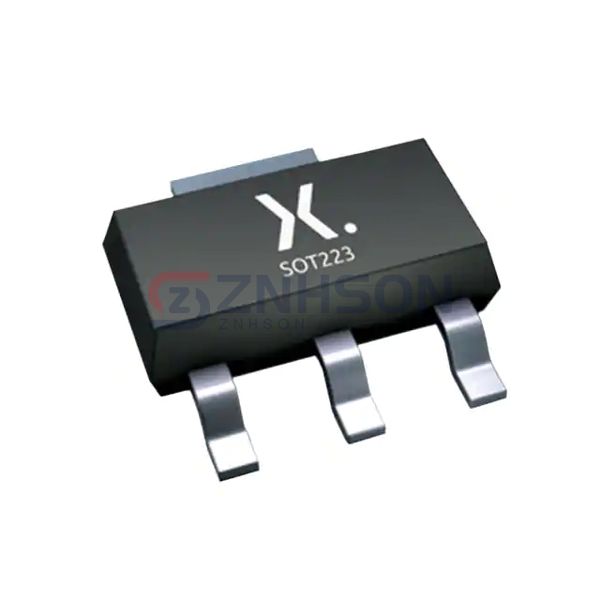

DIODE ARRAY SCHOTTKY 25V SOT223
$0.70
Available to order
Reference Price (USD)
1,000+
$0.27750
2,000+
$0.25500
5,000+
$0.24750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, Nexperia USA Inc.'s BAT120C,115 represents the next generation of rectifier diode arrays. This Discrete Semiconductor Product features innovative passivation layers that enhance reliability in humid conditions. Its primary applications include marine electronics, oil drilling equipment, and military power systems where corrosion resistance is paramount. With Nexperia USA Inc.'s proprietary screening processes, the BAT120C,115 guarantees exceptional performance in the most challenging electrical environments.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 25 V
- Current - Average Rectified (Io) (per Diode): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 450 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 mA @ 25 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223
