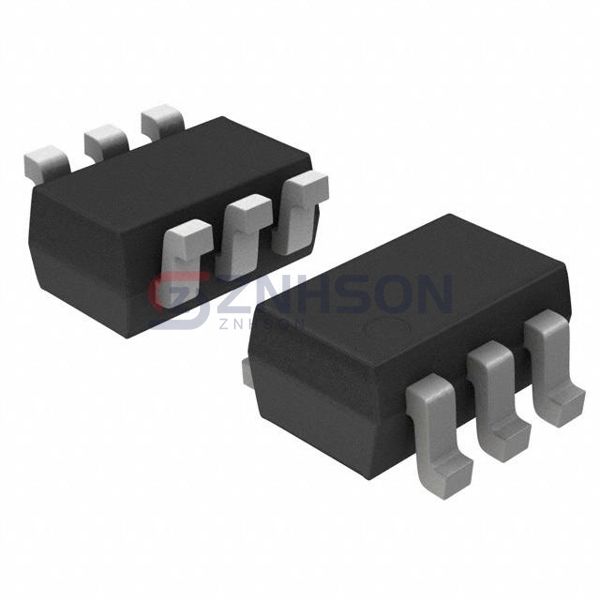

BAT54CDW-TP
Micro Commercial Co
Micro Commercial Co
DIODE ARRAY SCHOTTKY 30V SOT363
$0.13
Available to order
Reference Price (USD)
3,000+
$0.15200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54CDW-TP from Micro Commercial Co sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Micro Commercial Co's rigorous quality control ensures the BAT54CDW-TP maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 2 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -65°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
