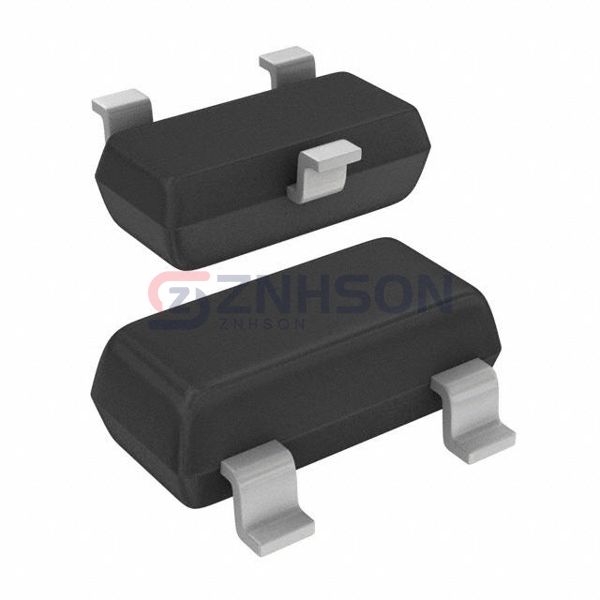

BAT54SWFILMY
STMicroelectronics
STMicroelectronics
DIODE ARRAY
$0.53
Available to order
Reference Price (USD)
3,000+
$0.07358
6,000+
$0.06686
15,000+
$0.06014
30,000+
$0.05678
75,000+
$0.05342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the BAT54SWFILMY - STMicroelectronics's advanced solution in the Diodes - Rectifiers - Arrays segment. This high-speed rectifier array boasts ultra-low recovery time, significantly reducing power loss in switching applications. From server power supplies to LED lighting drivers and electric vehicle charging stations, this component ensures energy-efficient operation. STMicroelectronics combines innovative silicon technology with rigorous testing to deliver diode arrays that outperform in reliability and thermal management.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 300mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 100 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 30 V
- Operating Temperature - Junction: -40°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323-3
