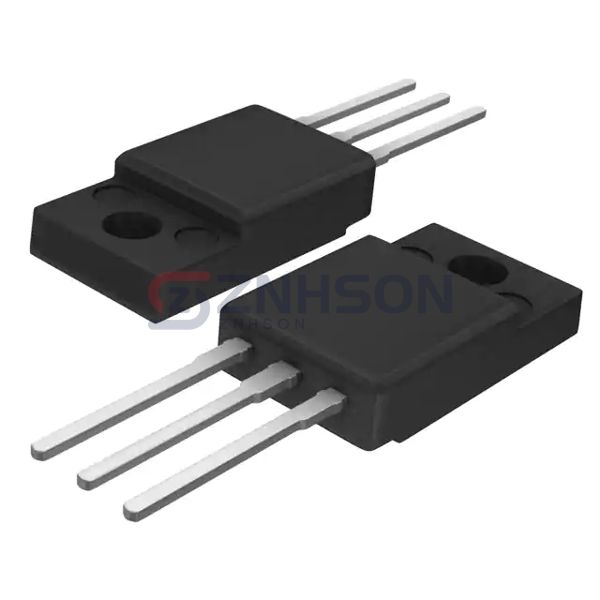

WNS20S100CXQ
WeEn Semiconductors
WeEn Semiconductors
SCHOTTKY POWER DIODE
$0.28
Available to order
Reference Price (USD)
1+
$0.28050
500+
$0.277695
1000+
$0.27489
1500+
$0.272085
2000+
$0.26928
2500+
$0.266475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The WNS20S100CXQ from WeEn Semiconductors sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. WeEn Semiconductors's rigorous quality control ensures the WNS20S100CXQ maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 100 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: TO-220F
