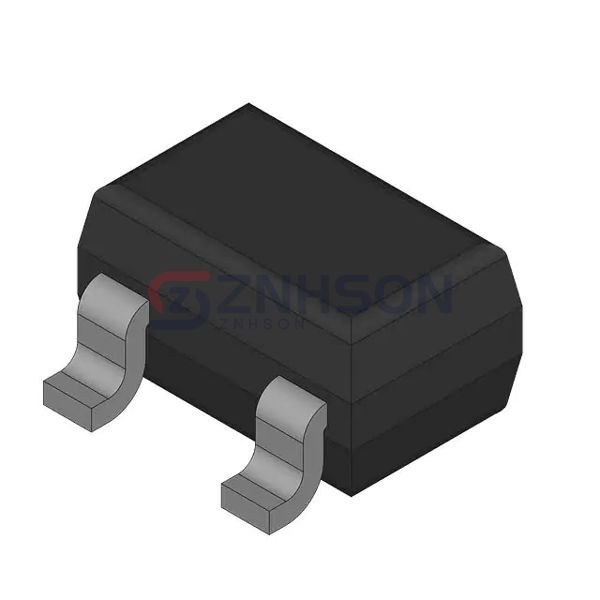

BAT54W135
NXP USA Inc.
NXP USA Inc.
NOW NEXPERIA BAT54W - RECTIFIER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the BAT54W135 single rectifier diode from NXP USA Inc.. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the BAT54W135 delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. NXP USA Inc.'s BAT54W135 is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
- Operating Temperature - Junction: 150°C (Max)
