BAV199Q-7-F
Diodes Incorporated
Diodes Incorporated
DIODE DUAL 85V 140MA SOT23
$0.24
Available to order
Reference Price (USD)
3,000+
$0.04000
6,000+
$0.03520
15,000+
$0.03040
30,000+
$0.02880
75,000+
$0.02720
150,000+
$0.02560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance BAV199Q-7-F from Diodes Incorporated, a premium diode rectifier array designed for efficient power conversion in demanding applications. As part of the Discrete Semiconductor Products category, this diode array ensures reliable rectification with low forward voltage drop and high surge current capability. Ideal for power supplies, motor controls, and inverters, the BAV199Q-7-F delivers exceptional durability and thermal performance. Whether you're designing industrial equipment or automotive electronics, trust Diodes Incorporated's cutting-edge technology for superior efficiency and longevity.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 85 V
- Current - Average Rectified (Io) (per Diode): 140mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 50 mA
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 3 µs
- Current - Reverse Leakage @ Vr: 5 nA @ 75 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
Related Products
Phoenix Contact
2954808
Nexperia USA Inc.
BAW56QAZ
Vishay General Semiconductor - Diodes Division
VS-MBRB20100CTR-M3

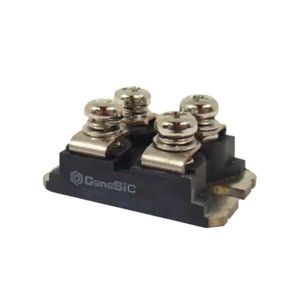

GeneSiC Semiconductor
MBR2X060A045
Vishay General Semiconductor - Diodes Division
VB20100C-E3/8W
GeneSiC Semiconductor
MSRT150160A
Vishay General Semiconductor - Diodes Division
VB40150C-E3/8W
Vishay General Semiconductor - Diodes Division
VS-6CWQ03FNTR-M3

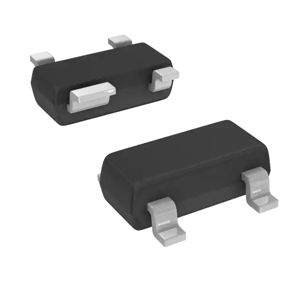

Panasonic Electronic Components
