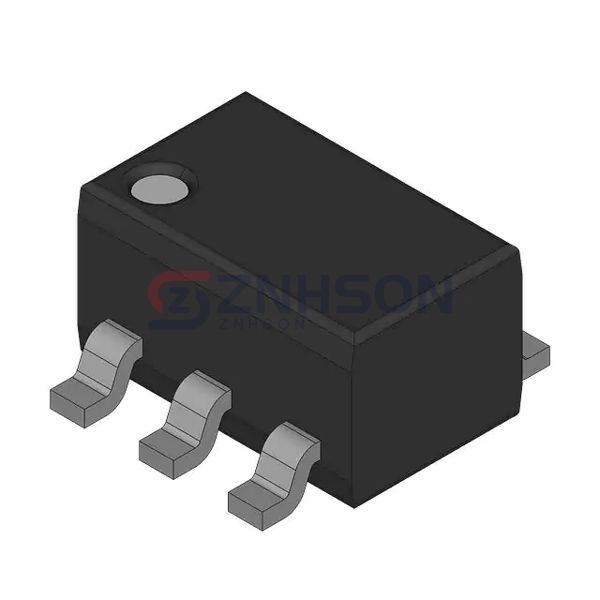

BAV70S/DG/B3135
NXP USA Inc.
NXP USA Inc.
RECTIFIER DIODE
$0.04
Available to order
Reference Price (USD)
1+
$0.04000
500+
$0.0396
1000+
$0.0392
1500+
$0.0388
2000+
$0.0384
2500+
$0.038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, NXP USA Inc.'s BAV70S/DG/B3135 represents the next generation of rectifier diode arrays. This Discrete Semiconductor Product features innovative passivation layers that enhance reliability in humid conditions. Its primary applications include marine electronics, oil drilling equipment, and military power systems where corrosion resistance is paramount. With NXP USA Inc.'s proprietary screening processes, the BAV70S/DG/B3135 guarantees exceptional performance in the most challenging electrical environments.
Specifications
- Product Status: Active
- Diode Configuration: 2 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 250mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: 6-TSSOP
