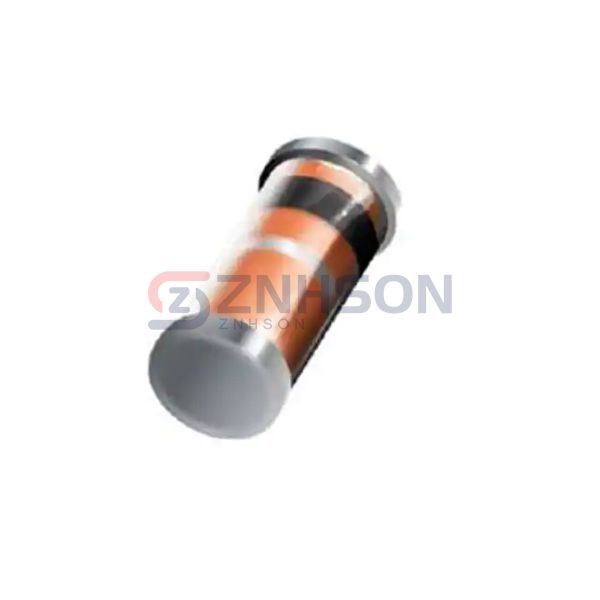

BZT55B22 L0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 22V 500MW MINI MELF
$0.04
Available to order
Reference Price (USD)
10,000+
$0.03174
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT55B22 L0G by Taiwan Semiconductor Corporation is a top-tier single Zener diode, part of the Discrete Semiconductor Products family. Renowned for its accuracy and efficiency, this diode is a go-to solution for voltage regulation needs. Its key attributes include a tight voltage tolerance, minimal noise, and high power dissipation capacity. The BZT55B22 L0G excels in applications like voltage reference circuits, power management systems, and signal conditioning. For example, it is extensively used in IoT devices, ensuring stable operation by maintaining precise voltage levels. Additionally, it plays a vital role in aerospace and defense electronics, where reliability under extreme conditions is crucial.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: Mini MELF
