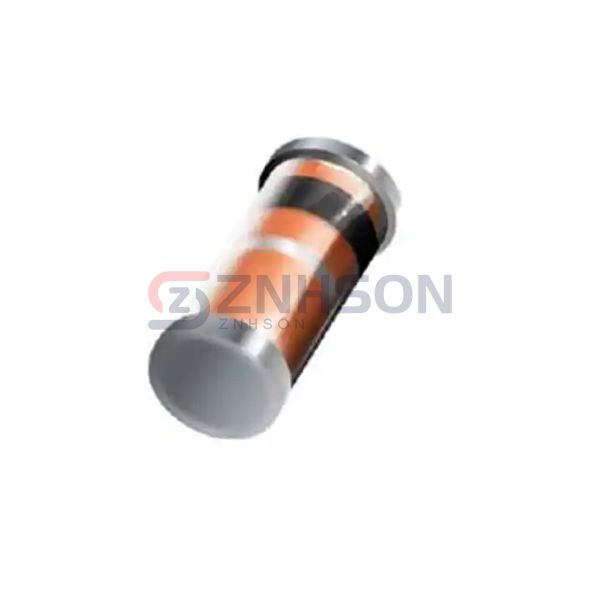

BZT55C15 L0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 15V 500MW MINI MELF
$0.04
Available to order
Reference Price (USD)
10,000+
$0.02340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT55C15 L0G by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZT55C15 L0G is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 30 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 11 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: Mini MELF
Related Products
Microchip Technology
SMBJ4756AE3/TR13
Microchip Technology
JANTX1N4113D-1
Rohm Semiconductor
CDZVT2R4.7B
Nexperia USA Inc.
BZX84-C20,215
Microchip Technology
JAN1N4119D-1
Taiwan Semiconductor Corporation
1PGSMA130Z
Renesas Electronics America Inc
HZ4.3CP90TK
Micro Commercial Co
1N5924BP-TP
Microchip Technology

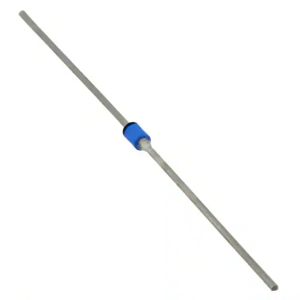

1N3156/TR
