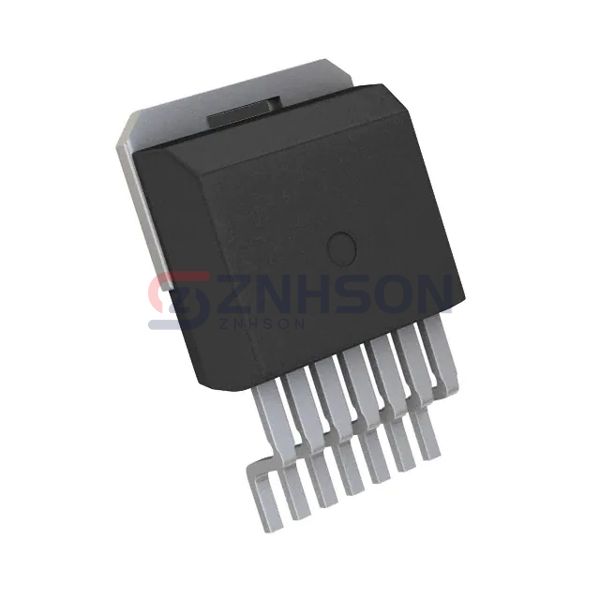

C3M0120100J
Wolfspeed, Inc.
Wolfspeed, Inc.
SICFET N-CH 1000V 22A D2PAK-7
$13.78
Available to order
Reference Price (USD)
1+
$9.18000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the C3M0120100J by Wolfspeed, Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the C3M0120100J is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 155mOhm @ 15A, 15V
- Vgs(th) (Max) @ Id: 3.5V @ 3mA
- Gate Charge (Qg) (Max) @ Vgs: 21.5 nC @ 15 V
- Vgs (Max): +15V, -4V
- Input Capacitance (Ciss) (Max) @ Vds: 350 pF @ 600 V
- FET Feature: -
- Power Dissipation (Max): 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
