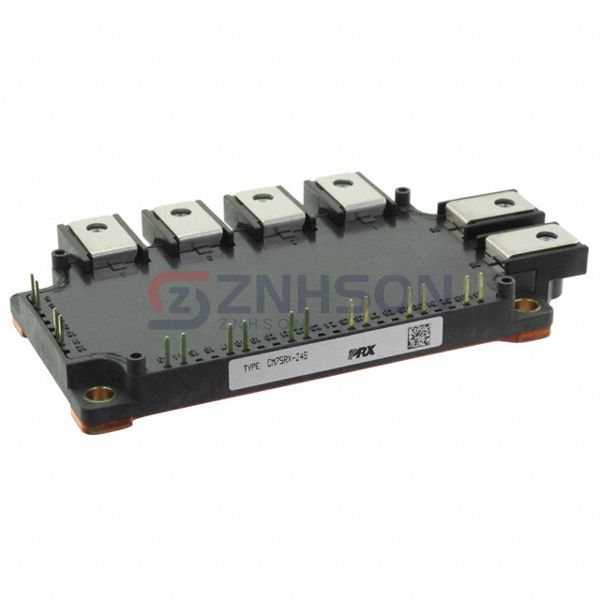

CM75RX-24S
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 75A 600W
$0.00
Available to order
Reference Price (USD)
10+
$147.05700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Powerex Inc.'s CM75RX-24S stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the CM75RX-24S enables higher power density in MRI gradient amplifiers. Choose Powerex Inc. for IGBT modules that push performance boundaries.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 600 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 7.5 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
