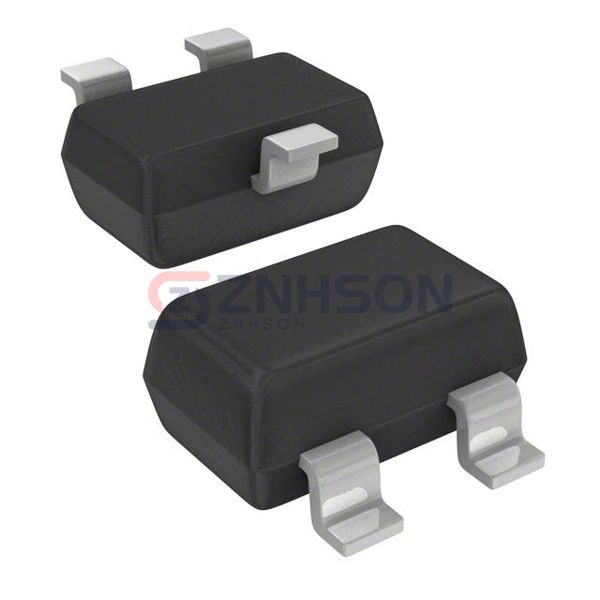

CMSD2005S BK PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE ARRAY GP 300V 225MA SOT323
$0.10
Available to order
Reference Price (USD)
1+
$0.09889
500+
$0.0979011
1000+
$0.0969122
1500+
$0.0959233
2000+
$0.0949344
2500+
$0.0939455
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the CMSD2005S BK PBFREE by Central Semiconductor Corp represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Central Semiconductor Corp's patented junction design, the CMSD2005S BK PBFREE achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io) (per Diode): 225mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 200 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 50 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 280 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
