CSCC211-0502A001C1AF
Greenconn
Greenconn
1.00MM FEMALE HEADER DUAL ROWS S
$0.94
Available to order
Reference Price (USD)
1+
$0.94000
500+
$0.9306
1000+
$0.9212
1500+
$0.9118
2000+
$0.9024
2500+
$0.893
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

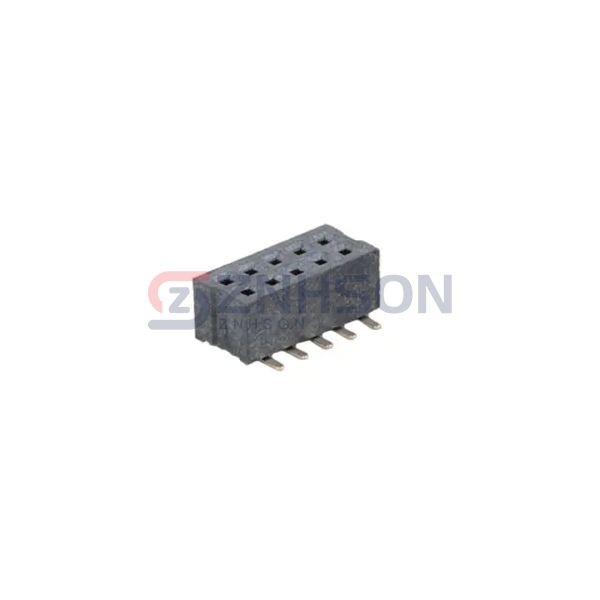

The CSCC211-0502A001C1AF by Greenconn is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Greenconn delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Female Socket
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: -
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.089" (2.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
