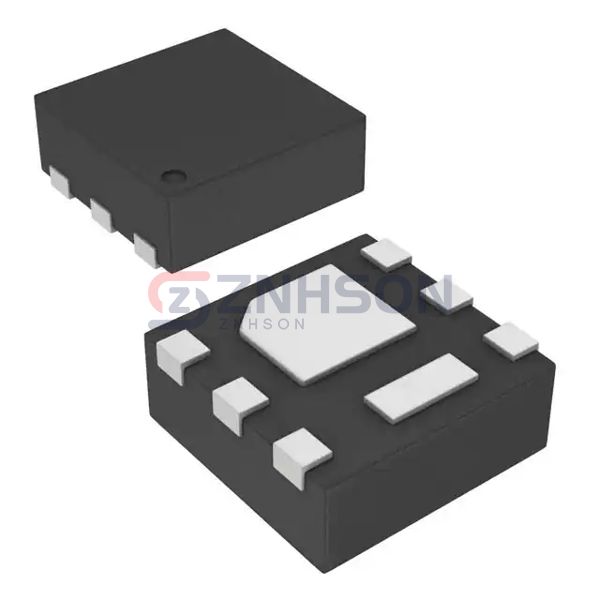

CSD16301Q2
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 5A 6SON
$0.65
Available to order
Reference Price (USD)
3,000+
$0.18600
6,000+
$0.17400
15,000+
$0.16800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD16301Q2 by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD16301Q2 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 24mOhm @ 4A, 8V
- Vgs(th) (Max) @ Id: 1.55V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.8 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 2.3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SON
- Package / Case: 6-SMD, Flat Leads
