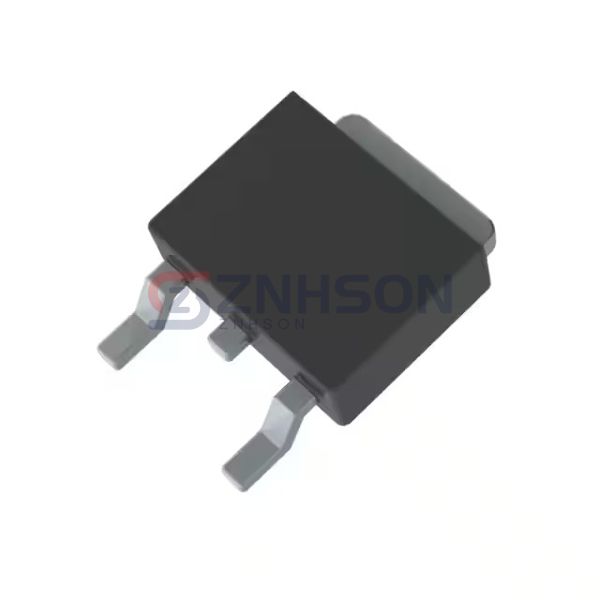

PJMD390N65EC_L2_00001
Panjit International Inc.
Panjit International Inc.
650V SUPER JUNCITON MOSFET
$7.23
Available to order
Reference Price (USD)
1+
$7.23000
500+
$7.1577
1000+
$7.0854
1500+
$7.0131
2000+
$6.9408
2500+
$6.8685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJMD390N65EC_L2_00001 by Panjit International Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PJMD390N65EC_L2_00001 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 650 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 390mOhm @ 5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 726 pF @ 400 V
- FET Feature: -
- Power Dissipation (Max): 87.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252AA
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
