CSD17309Q3
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 20A/60A 8VSON
$1.24
Available to order
Reference Price (USD)
2,500+
$0.45640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the CSD17309Q3 single MOSFET from Texas Instruments. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the CSD17309Q3 combines cutting-edge technology with Texas Instruments's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 5.4mOhm @ 18A, 8V
- Vgs(th) (Max) @ Id: 1.7V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 1440 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (3.3x3.3)
- Package / Case: 8-PowerTDFN
Related Products
IXYS
IXFP72N30X3
STMicroelectronics
SCT10N120
Panjit International Inc.
PJP60R980E_T0_00001
Panjit International Inc.
PJA3414_R1_00001
Microchip Technology
APT24M120L
onsemi

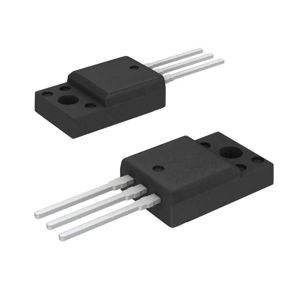

FQPF9N90CT
Vishay Siliconix
IRL620SPBF
MDD

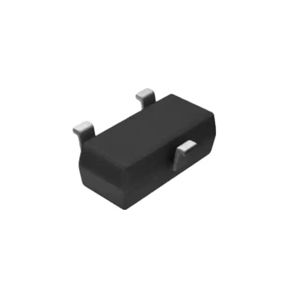

AO3400-5.8A
Infineon Technologies

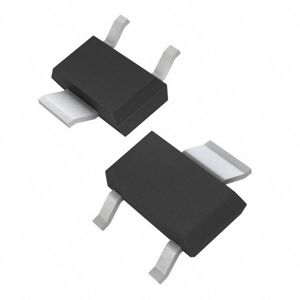

IPN80R600P7ATMA1
