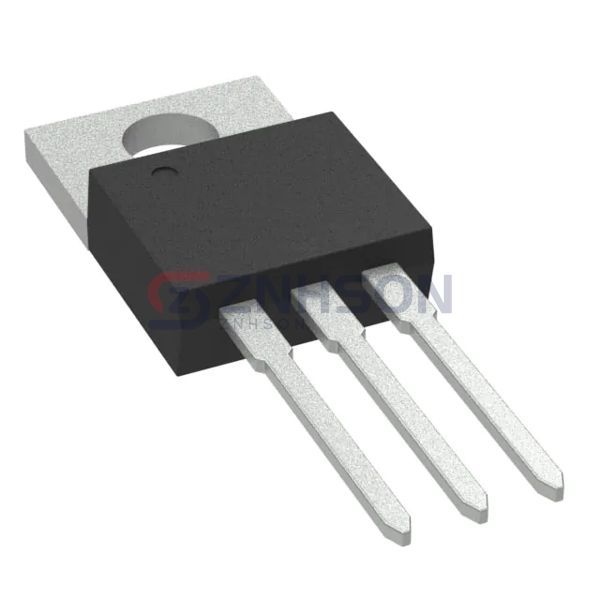

CSD18502KCS
Texas Instruments
Texas Instruments
MOSFET N-CH 40V 100A TO220-3
$2.76
Available to order
Reference Price (USD)
1+
$2.25000
10+
$2.03200
50+
$1.81820
100+
$1.64000
500+
$1.28342
1,000+
$1.06950
2,500+
$1.03385
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD18502KCS by Texas Instruments is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the CSD18502KCS is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.9mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 62 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4680 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 259W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
Related Products
Texas Instruments
CSD17322Q5A
Fairchild Semiconductor
ISL9N2357D3ST
Infineon Technologies
SPW12N50C3
Infineon Technologies
BSS138WH6327XTSA1
onsemi
FDB8443
Vishay Siliconix
SI7884BDP-T1-E3
Fairchild Semiconductor
FDB5645
Vishay Siliconix
IRLZ34PBF-BE3
onsemi

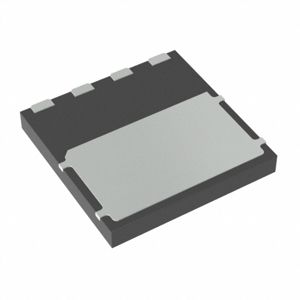

FCMT360N65S3
