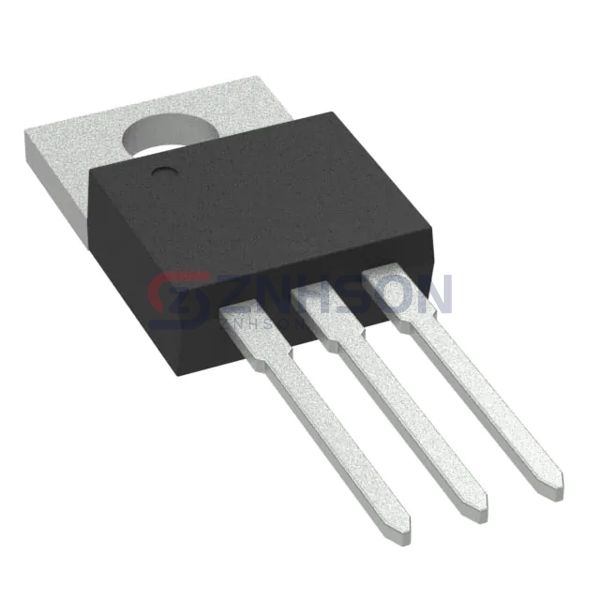

CSD18533KCS
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 72A/100A TO220-3
$1.88
Available to order
Reference Price (USD)
1+
$1.60000
10+
$1.44700
50+
$1.29540
100+
$1.16840
500+
$0.91440
1,000+
$0.76200
2,500+
$0.73660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD18533KCS from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD18533KCS offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 72A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.3mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3025 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 192W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
