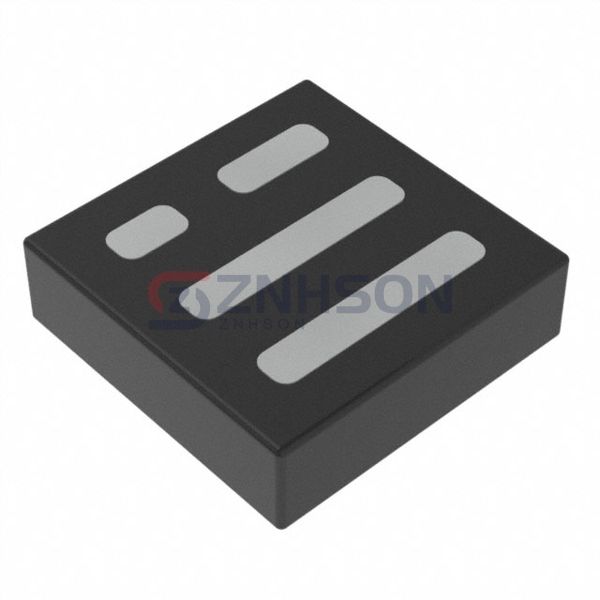

CSD22205L
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 7.4A 4PICOSTAR
$0.56
Available to order
Reference Price (USD)
1+
$0.56000
500+
$0.5544
1000+
$0.5488
1500+
$0.5432
2000+
$0.5376
2500+
$0.532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the CSD22205L single MOSFET from Texas Instruments. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Texas Instruments's CSD22205L for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 7.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 9.9mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.5 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1390 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 600mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 4-PICOSTAR
- Package / Case: 4-XFLGA
Related Products
IXYS
IXTK120N25P
Torex Semiconductor Ltd
XP232N0301TR-G
Nexperia USA Inc.
PSMN1R5-30BLEJ
Texas Instruments
TPIC5421LNE
Nexperia USA Inc.
PSMN5R6-100BS,118

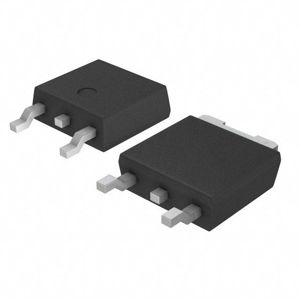

Vishay Siliconix
IRFR9014TRPBF
Panjit International Inc.
PJA3463_R1_00001
STMicroelectronics
STWA48N60DM2

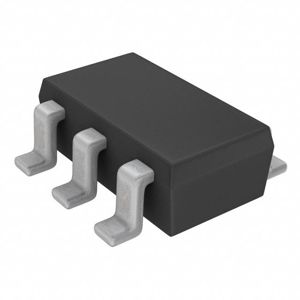

Rohm Semiconductor
