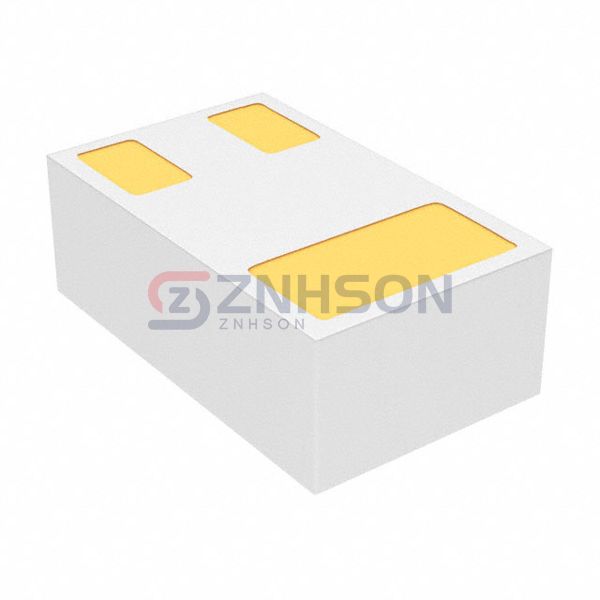

CSD23381F4
Texas Instruments
Texas Instruments
MOSFET P-CH 12V 2.3A 3PICOSTAR
$0.47
Available to order
Reference Price (USD)
3,000+
$0.08200
6,000+
$0.07400
15,000+
$0.06600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD23381F4 single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD23381F4 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 2.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 175mOhm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.14 nC @ 4.5 V
- Vgs (Max): -8V
- Input Capacitance (Ciss) (Max) @ Vds: 236 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
