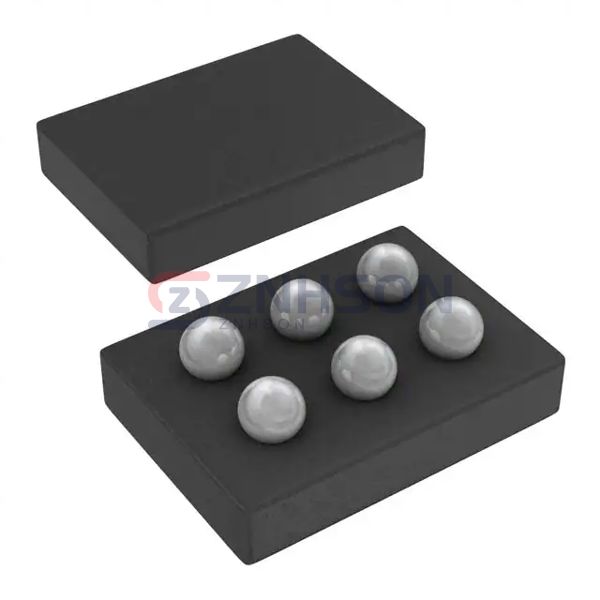

CSD25301W1015
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 2.2A 6DSBGA
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD25301W1015 by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD25301W1015 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 75mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.5 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 270 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
Related Products
Infineon Technologies
IPD088N04LGBTMA1
STMicroelectronics
STB130NS04ZBT4
IXYS
IXTH50N20
Toshiba Semiconductor and Storage
TK4A60DB(STA4,Q,M)
Vishay Siliconix
SI4426DY-T1-GE3
Rohm Semiconductor
RRS075P03TB1
Vishay Siliconix
SIJ484DP-T1-GE3
STMicroelectronics

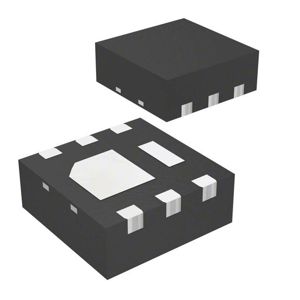

STL4P2UH7
Panasonic Electronic Components

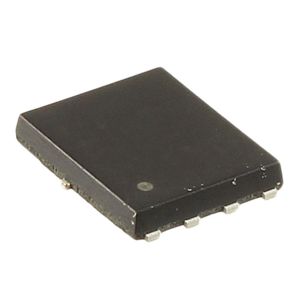

SK8603180L
