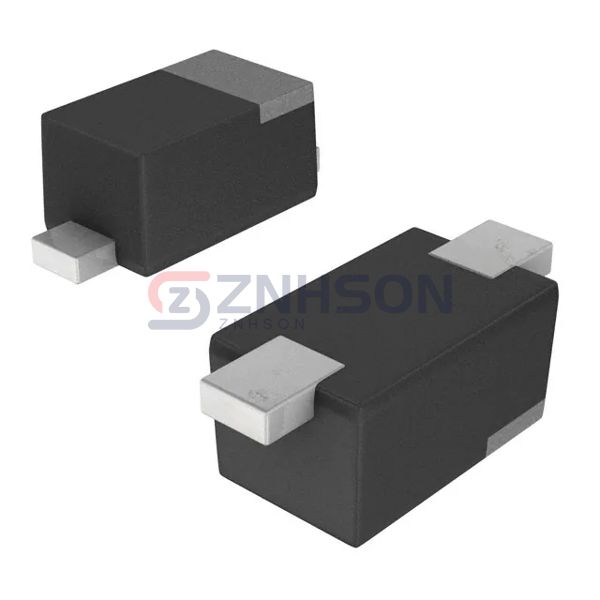

DB2141200L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 40V 1.5A SMINI2
$0.00
Available to order
Reference Price (USD)
3,000+
$0.11800
6,000+
$0.11169
15,000+
$0.10538
30,000+
$0.10222
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2141200L by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the DB2141200L ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 1.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 12 ns
- Current - Reverse Leakage @ Vr: 150 µA @ 40 V
- Capacitance @ Vr, F: 43pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 2-SMD, Flat Lead
- Supplier Device Package: SMINI2-F4-B-B
- Operating Temperature - Junction: 150°C (Max)
Related Products
Taiwan Semiconductor Corporation
HER302G A0G
Taiwan Semiconductor Corporation
SS26L MQG
Taiwan Semiconductor Corporation
SS29L RFG
Vishay General Semiconductor - Diodes Division

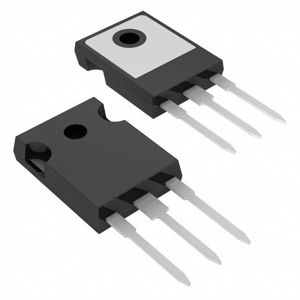

HFA25PB60
Vishay General Semiconductor - Diodes Division
1N5618GP-E3/54
Micro Commercial Co

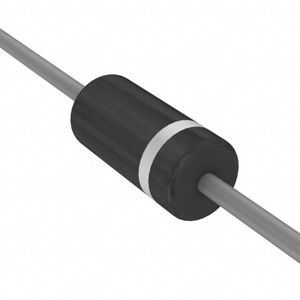

HER203-TP
Taiwan Semiconductor Corporation

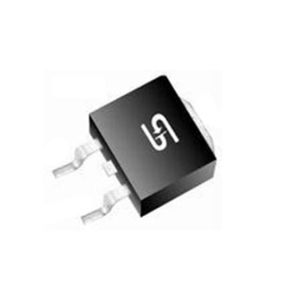

SRAS2020 MNG
