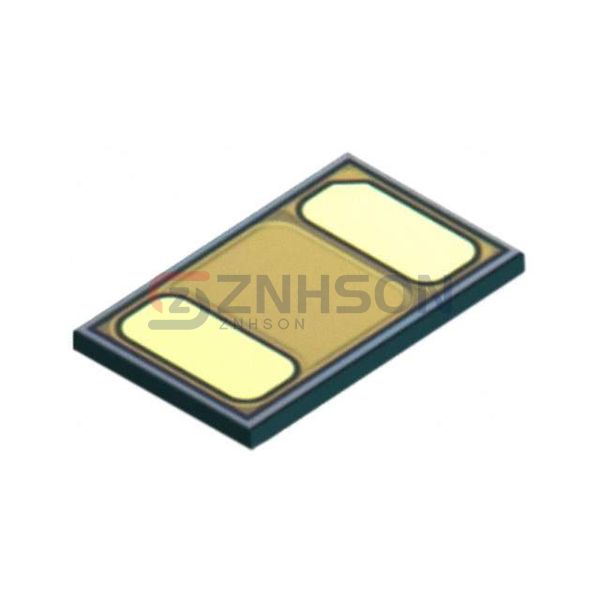

DB2G42600L1
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 40V 1A 0402
$0.00
Available to order
Reference Price (USD)
1,000+
$0.11080
2,000+
$0.09972
5,000+
$0.09418
10,000+
$0.08587
25,000+
$0.08033
50,000+
$0.07756
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2G42600L1 by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the DB2G42600L1 ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 8.7 ns
- Current - Reverse Leakage @ Vr: 30 µA @ 40 V
- Capacitance @ Vr, F: 28pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 0402 (1005 Metric)
- Operating Temperature - Junction: 150°C (Max)
