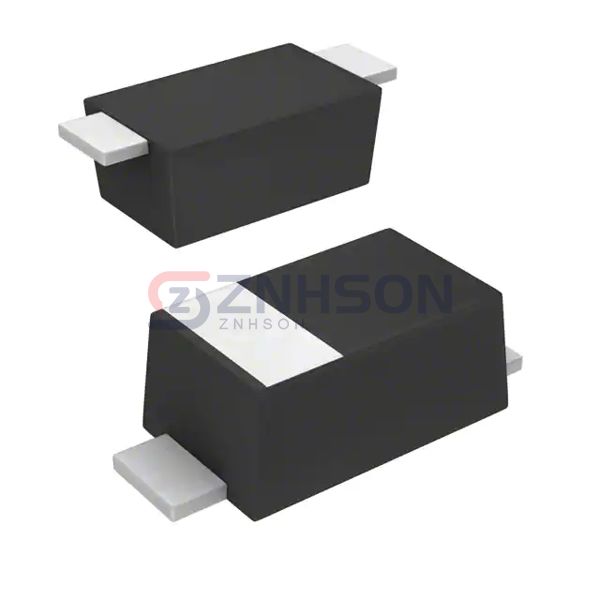

DB2W40100L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 40V 1A MINI2
$0.00
Available to order
Reference Price (USD)
3,000+
$0.10458
6,000+
$0.09877
15,000+
$0.09006
30,000+
$0.08425
75,000+
$0.08134
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2W40100L from Panasonic Electronic Components is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panasonic Electronic Components's DB2W40100L for superior performance and durability in demanding environments.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 390 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 15 ns
- Current - Reverse Leakage @ Vr: 250 µA @ 40 V
- Capacitance @ Vr, F: 50pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: Mini2-F3-B
- Operating Temperature - Junction: 150°C (Max)
