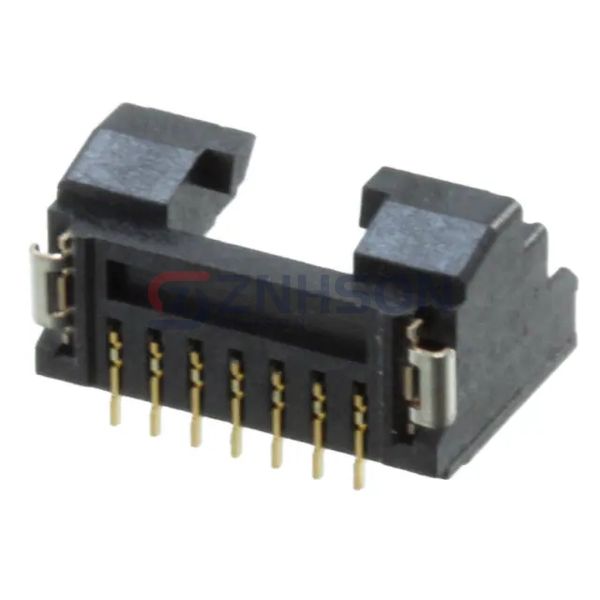

DF50A-7P-1V(51)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 7POS 1MM
$0.77
Available to order
Reference Price (USD)
1,000+
$0.37950
2,000+
$0.36800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF50A-7P-1V(51) male pin header by Hirose Electric Co Ltd provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.278" (7.06mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyester
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 100V
