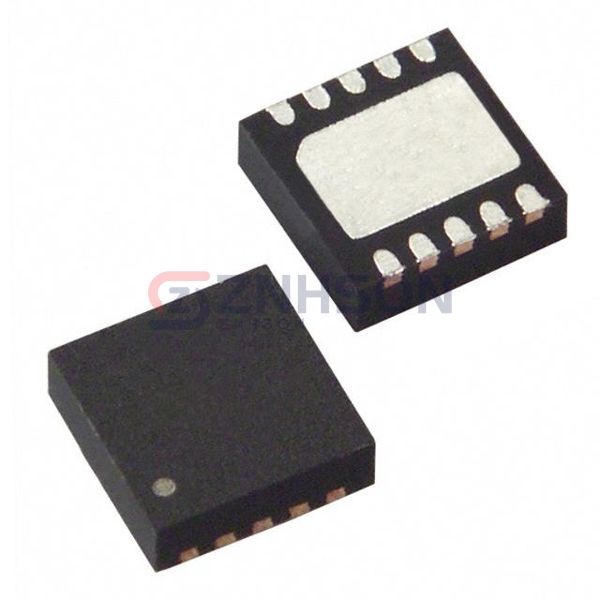

DG2536DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH LV DUAL SPST 10DFN
$0.00
Available to order
Reference Price (USD)
2,500+
$0.81000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG2536DN-T1-E4 by Vishay Siliconix represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The DG2536DN-T1-E4 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm (Max)
- Voltage - Supply, Single (V+): 3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 82ns, 73ns
- -3db Bandwidth: -
- Charge Injection: 21pC
- Channel Capacitance (CS(off), CD(off)): 145pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -69dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad
- Supplier Device Package: 10-DFN (3x3)
