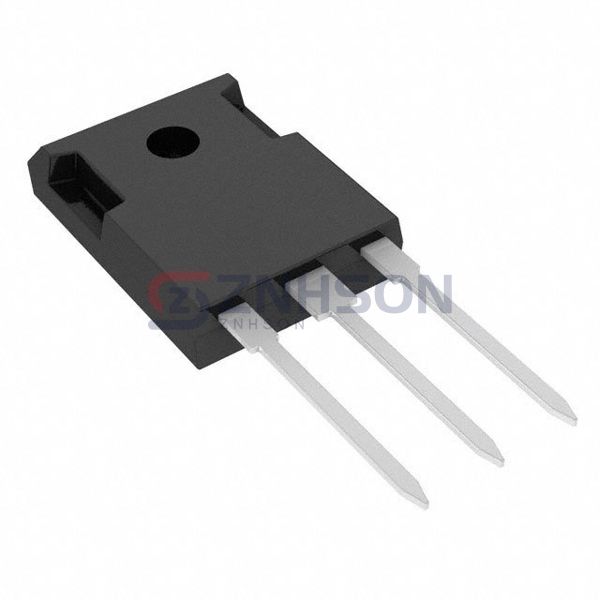

DGTD120T25S1PT
Diodes Incorporated
Diodes Incorporated
IGBT 1200V-X TO247 TUBE 0.45K
$5.33
Available to order
Reference Price (USD)
450+
$5.33469
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier performance with the DGTD120T25S1PT Single IGBT transistor from Diodes Incorporated. As a key player in Discrete Semiconductor Products, this IGBT offers excellent thermal management and high switching frequency. Perfect for applications like server power supplies, LED lighting, and telecommunications, the DGTD120T25S1PT ensures energy efficiency and reliability. Trust Diodes Incorporated's expertise to deliver a component that enhances your power electronics with superior functionality.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 50 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 25A
- Power - Max: 348 W
- Switching Energy: 1.44mJ (on), 550µJ (off)
- Input Type: Standard
- Gate Charge: 204 nC
- Td (on/off) @ 25°C: 73ns/269ns
- Test Condition: 600V, 25A, 23Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
Related Products
Infineon Technologies
IGP40N65F5XKSA1
Alpha & Omega Semiconductor Inc.
AOK40B65H1
onsemi
MGP4N60E
Infineon Technologies
IKB10N60TATMA1
Infineon Technologies
SKW07N120FKSA1
IXYS
IXGT32N120A3
STMicroelectronics
STGB7NC60HDT4
Infineon Technologies
IKFW90N60EH3XKSA1
IXYS

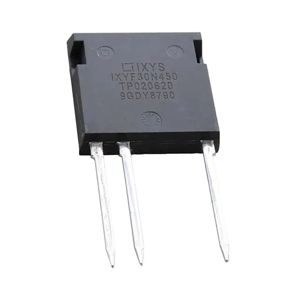

IXYF30N450
