DMC261010R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS 2NPN PREBIAS 0.3W MINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.11452
6,000+
$0.10758
15,000+
$0.10064
30,000+
$0.09254
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Panasonic Electronic Components's DMC261010R, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The DMC261010R is widely used in lighting systems, portable electronics, and automotive accessories. Panasonic Electronic Components's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the DMC261010R is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: Mini5-G3-B
Related Products
Nexperia USA Inc.
PUMD2/DG/B3,135
Nexperia USA Inc.

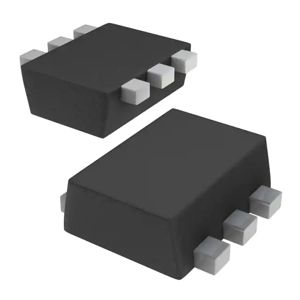

PEMD19,115
Panasonic Electronic Components

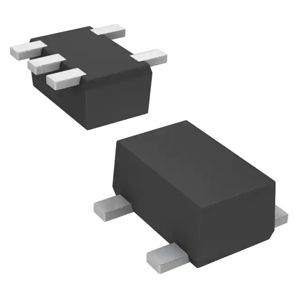

DMG563H40R
Panasonic Electronic Components
DMC266030R
Rohm Semiconductor
EMB6T2R
Diodes Incorporated
DCX142TU-7-F
Panasonic Electronic Components

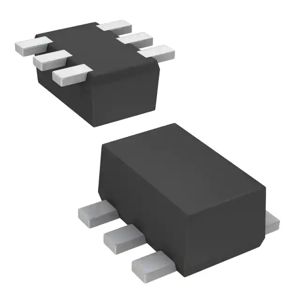

UP0411MG0L
