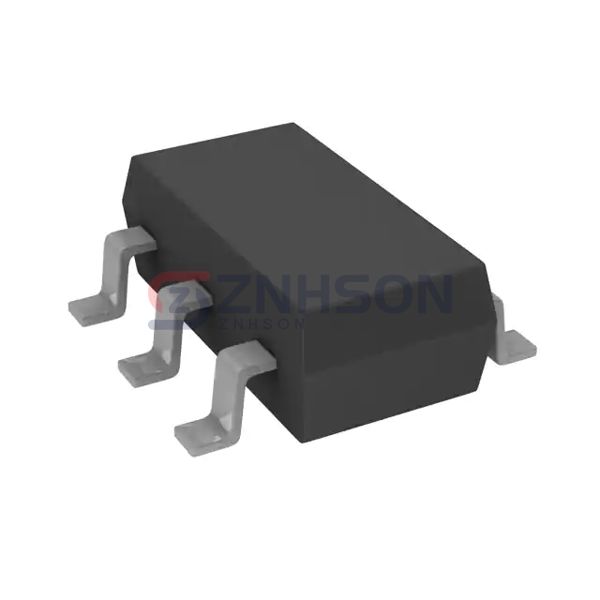

DMC3071LVT-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 25V-30V TSOT26 T&R
$0.08
Available to order
Reference Price (USD)
10,000+
$0.08624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the DMC3071LVT-13 by Diodes Incorporated, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the DMC3071LVT-13 ensures energy efficiency and robust performance. Diodes Incorporated's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: N and P-Channel Complementary
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 4.6A (Ta), 3.3A (Ta)
- Rds On (Max) @ Id, Vgs: 50mOhm @ 3.5A, 10V, 95mOhm @ 3.8A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.5nC @ 10V, 6.5nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 190pF @ 15V, 254pF @ 15V
- Power - Max: 700mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: TSOT-26
Related Products
Fairchild Semiconductor
RF1K4915496
onsemi
NTHC5513T1G
Rohm Semiconductor
QH8K26TR
Microchip Technology
APTC60TAM24TPG
Fairchild Semiconductor
NDS8947
Rectron USA
RM2004NE
Central Semiconductor Corp

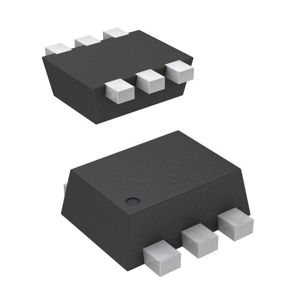

CMLDM7003G TR
Vishay Siliconix

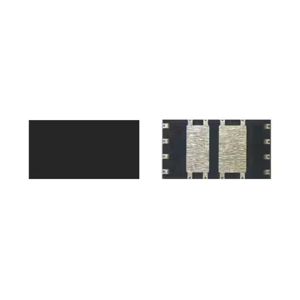

SQUN700E-T1_GE3
Panasonic Electronic Components

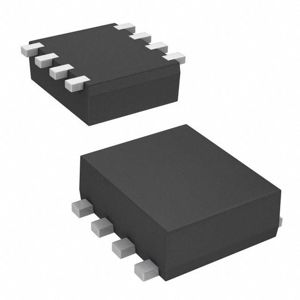

MTM684110LBF
