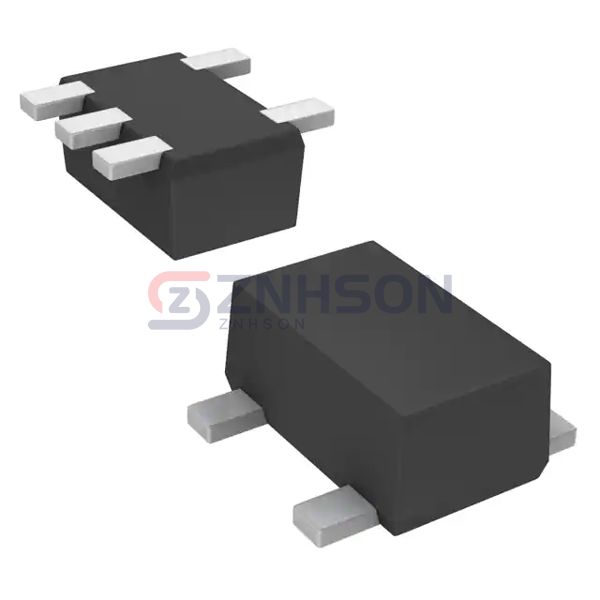

DMC561030R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS 2NPN PREBIAS 0.15W SMINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.08631
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMC561030R from Panasonic Electronic Components is a versatile pre-biased BJT array designed to meet the needs of diverse electronic applications. Featuring matched transistors and built-in resistors, this product enhances circuit performance while reducing design complexity. It is commonly used in audio amplifiers, power converters, and automotive electronics. Panasonic Electronic Components's commitment to quality ensures that the DMC561030R operates flawlessly in both commercial and industrial settings. With its excellent thermal performance and high reliability, this transistor array is an essential component for any engineer's toolkit.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 2 NPN - Pre-Biased (Dual) (Emitter Coupled)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: 6-SMD (5 Leads), Flat Lead
- Supplier Device Package: SMini5-F3-B
