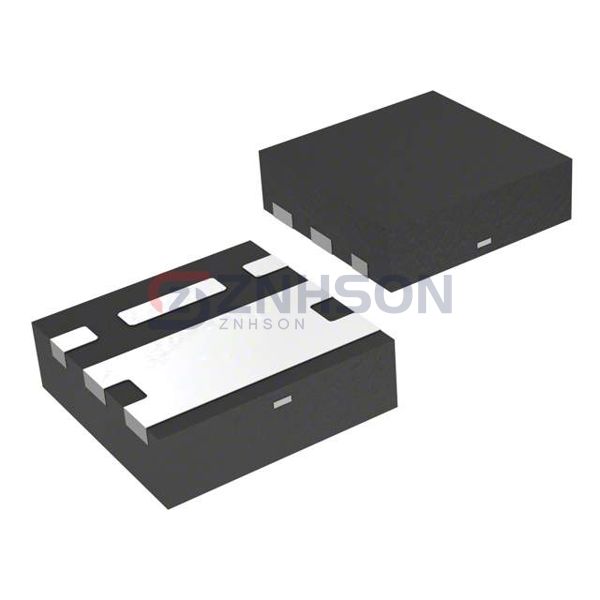

DMN1019UFDE-7
Diodes Incorporated
Diodes Incorporated
MOSFET N CH 12V 11A U-DFN2020-6E
$0.52
Available to order
Reference Price (USD)
3,000+
$0.18669
6,000+
$0.17591
15,000+
$0.16513
30,000+
$0.15758
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMN1019UFDE-7 by Diodes Incorporated is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the DMN1019UFDE-7 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 11A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.2V, 4.5V
- Rds On (Max) @ Id, Vgs: 10mOhm @ 9.7A, 4.5V
- Vgs(th) (Max) @ Id: 800mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 50.6 nC @ 8 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2425 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 690mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type E)
- Package / Case: 6-PowerUDFN
Related Products
Microchip Technology
APT6013JFLL
Diodes Incorporated
DMP2004K-7
Infineon Technologies
BTS110NKSA1
Diodes Incorporated
DMT10H072LFDFQ-7
Microchip Technology
APT20M45BVFRG
Toshiba Semiconductor and Storage
TPW4R008NH,L1Q
Infineon Technologies
BSC010N04LSIATMA1
STMicroelectronics
STF12N65M5
Toshiba Semiconductor and Storage

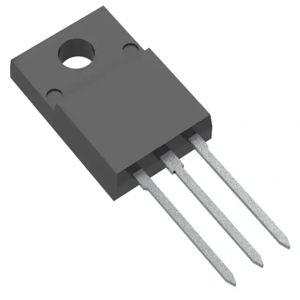

TK22A65X,S5X
