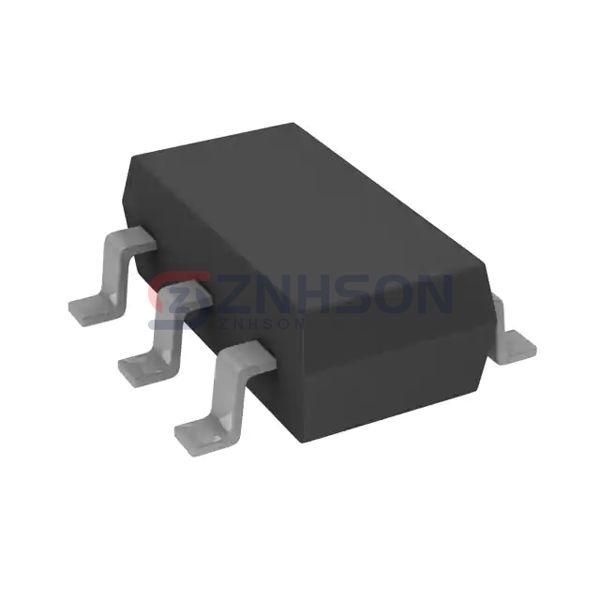

DMPH2040UVTQ-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 5.6/11.7A TSOT26
$0.22
Available to order
Reference Price (USD)
1+
$0.21722
500+
$0.2150478
1000+
$0.2128756
1500+
$0.2107034
2000+
$0.2085312
2500+
$0.206359
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DMPH2040UVTQ-7 from Diodes Incorporated, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the DMPH2040UVTQ-7 ensures reliable performance in demanding environments. Upgrade your circuit designs with Diodes Incorporated's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.6A (Ta), 11.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 38mOhm @ 8.9A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 8 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 834 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TSOT-26
- Package / Case: SOT-23-6 Thin, TSOT-23-6
